Expandable ListView is a expandable collapsible vertical listview structure used to show multiple category and sub category wise list content
It can be also called as two level vertical scrolling listview
This can be implemented as a custom component
Check React Native Installation for installation related info
Use react-native init
command to create a new React Native project (here named ExpandableListViewApp)
react-native init ExpandableListViewApp
This creates a directory named ExpandableListViewApp and initializes it as a react native application directory
This can be skipped in case an existing react native project is being integrated into
A Json array is used to store data
Each element of array is to contain a boolean expanded
, string category
and a list of sub-categories subCategory
which have associated attributes
An ExpandableListView widget is defined with a key, element object and on onclick function as prop
It renders category as TouchableOpacity component and associates onclick function to it
Subcategory list is mapped to a list of TouchableOpacity components bound to corresponding onPress functions and initial height of list is set to 0
<View style={styles.panelContainer}>
<TouchableOpacity activeOpacity={0.8} onPress={this.props.onClickFunction} style={styles.categoryView}>
<Text style={styles.categoryText}>{this.props.item.category} </Text>
<Image
source={{ uri: 'https://i.postimg.cc/HLFkBBWk/arrow-right-icon.png' }}
style={styles.iconStyle} />
</TouchableOpacity>
<View style={{ height: this.state.layoutHeight, overflow: 'hidden' }}>
{
this.props.item.subCategory.map((item, key) => (
<TouchableOpacity key={key} style={styles.subCategoryText} onPress={this.showSelectedCategory.bind(this, item.name)}>
<Text> {item.name} </Text>
<View style={{ width: '100%', height: 1, backgroundColor: '#000' }} />
</TouchableOpacity>
))
}
</View>
</View>
Clicking on a category changes height to null, making it visible(since not explicitly setting height sets it to its default value 'auto')and associated onclick callback function schedules an animation to happen on the next layout (which happens due to setState() )
updateLayout = (index) => {
LayoutAnimation.configureNext(LayoutAnimation.Presets.easeInEaseOut);
const array = [...this.state.accordionData];
array[index]['expanded'] = !array[index]['expanded'];
this.setState(() => {
return {
accordionData: array
}
});
}
import React, { Component } from 'react';
import { Alert, LayoutAnimation, StyleSheet, View, Text, ScrollView, UIManager, TouchableOpacity, Platform, Image } from 'react-native';
class ExpandableListView extends Component {
constructor() {
super();
this.state = {
layoutHeight: 0
}
}
// https://reactjs.org/blog/2018/03/27/update-on-async-rendering.html
UNSAFE_componentWillReceiveProps(nextProps) {
if (nextProps.item.expanded) {
this.setState(() => {
return {
layoutHeight: null
}
});
}
else {
this.setState(() => {
return {
layoutHeight: 0
}
});
}
}
shouldComponentUpdate(nextProps, nextState) {
if (this.state.layoutHeight !== nextState.layoutHeight) {
return true;
}
return false;
}
showSelectedCategory = (item) => {
Alert.alert(item);
}
render() {
return (
<View style={styles.panelContainer}>
<TouchableOpacity activeOpacity={0.8} onPress={this.props.onClickFunction} style={styles.categoryView}>
<Text style={styles.categoryText}>{this.props.item.category} </Text>
<Image
source={{ uri: 'https://i.postimg.cc/HLFkBBWk/arrow-right-icon.png' }}
style={styles.iconStyle} />
</TouchableOpacity>
<View style={{ height: this.state.layoutHeight, overflow: 'hidden' }}>
{
this.props.item.subCategory.map((item, key) => (
<TouchableOpacity key={key} style={styles.subCategoryText} onPress={this.showSelectedCategory.bind(this, item.name)}>
<Text> {item.name} </Text>
<View style={{ width: '100%', height: 1, backgroundColor: '#000' }} />
</TouchableOpacity>
))
}
</View>
</View>
);
}
}
export default class App extends Component {
constructor() {
super();
if (Platform.OS === 'android') {
UIManager.setLayoutAnimationEnabledExperimental(true)
}
// create array to contain Expandable ListView items & create a State named as accordionData and store the array in this State
const array = [
{
expanded: false, category: "Mobiles", subCategory: [{ id: 1, name: 'Mi' }, { id: 2, name: 'RealMe' }, { id: 3, name: 'Samsung' },
{ id: 4, name: 'Infinix' }, { id: 5, name: 'Oppo' }, { id: 6, name: 'Apple' }, { id: 7, name: 'Honor' }]
},
{
expanded: false, category: "Laptops", subCategory: [{ id: 8, name: 'Dell' }, { id: 9, name: 'MAC' }, { id: 10, name: 'HP' },
{ id: 11, name: 'ASUS' }]
},
{
expanded: false, category: "Computer Accessories", subCategory: [{ id: 12, name: 'Pendrive' }, { id: 13, name: 'Bag' },
{ id: 14, name: 'Mouse' }, { id: 15, name: 'Keyboard' }]
},
{
expanded: false, category: "Home Entertainment", subCategory: [{ id: 16, name: 'Home Audio Speakers' },
{ id: 17, name: 'Home Theatres' }, { id: 18, name: 'Bluetooth Speakers' }, { id: 19, name: 'DTH Set Top Box' }]
},
{
expanded: false, category: "TVs by brand", subCategory: [{ id: 20, name: 'Mi' },
{ id: 21, name: 'Thomson' }, { id: 22, name: 'LG' }, { id: 23, name: 'SONY' }]
},
{
expanded: false, category: "Kitchen Appliances", subCategory: [{ id: 24, name: 'Microwave Ovens' },
{ id: 25, name: 'Oven Toaster Grills (OTG)' }, { id: 26, name: 'Juicer/Mixer/Grinder' }, { id: 27, name: 'Electric Kettle' }]
}
];
this.state = { accordionData: [...array] }
}
// enable layout animation, toggle 'expanded' state for index and then update the layout
updateLayout = (index) => {
LayoutAnimation.configureNext(LayoutAnimation.Presets.easeInEaseOut);
const array = [...this.state.accordionData];
array[index]['expanded'] = !array[index]['expanded'];
this.setState(() => {
return {
accordionData: array
}
});
}
render() {
return (
<View style={styles.container}>
<ScrollView contentContainerStyle={{ paddingHorizontal: 10, paddingVertical: 5 }}>
{
this.state.accordionData.map((item, key) =>
(
<ExpandableListView key={item.category} onClickFunction={this.updateLayout.bind(this, key)} item={item} />
))
}
</ScrollView>
</View>
);
}
}
const styles = StyleSheet.create({
container: {
flex: 1,
justifyContent: 'center',
paddingTop: (Platform.OS === 'ios') ? 20 : 0,
backgroundColor: '#F5FCFF',
},
iconStyle: {
width: 30,
height: 30,
justifyContent: 'flex-end',
alignItems: 'center',
tintColor: '#fff'
},
subCategoryText: {
fontSize: 18,
color: '#000',
padding: 10
},
categoryText: {
textAlign: 'left',
color: '#fff',
fontSize: 21,
padding: 10
},
categoryView: {
marginVertical: 5,
flexDirection: 'row',
justifyContent: 'space-between',
alignItems: 'center',
backgroundColor: '#0091EA'
},
Btn: {
padding: 10,
backgroundColor: '#FF6F00'
}
});
cd into project directory (here ExpandableListViewApp)
cd ExpandableListViewApp
Run metro server to serve js
react-native start
Go to project directory in another terminal tab

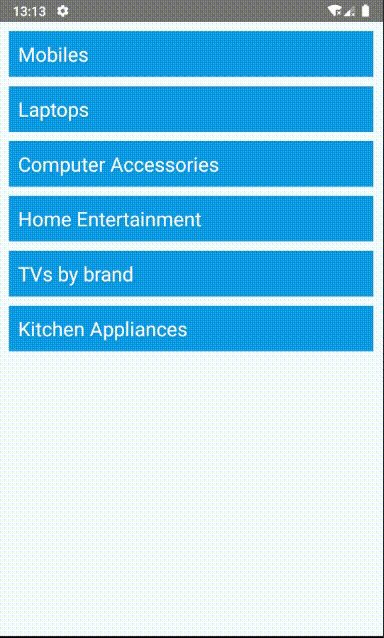

Enter following run command for Android:
react-native run-android
cd into project directory (here ExpandableListViewApp)
cd ExpandableListViewApp

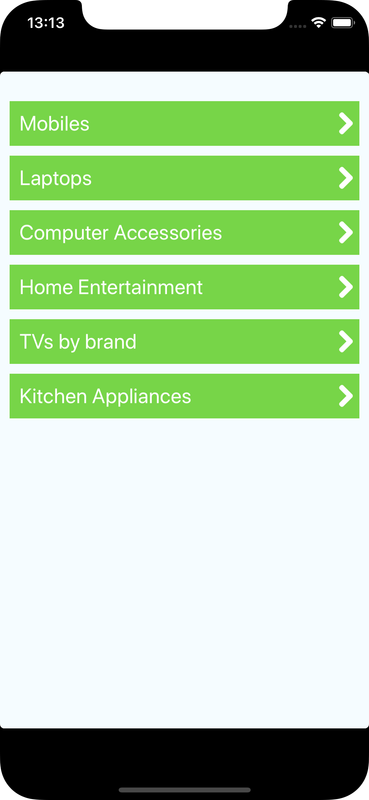

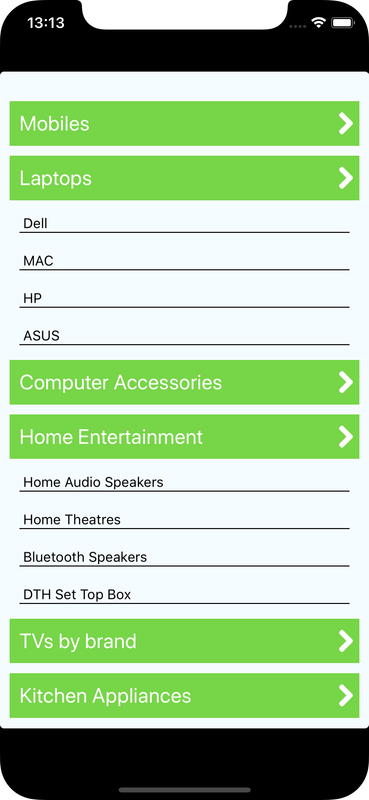

Enter following command :
react-native run-ios
This might take some time
If the app shows error about metro server not configured (check Running an App in iOS), then run metro server in another tab:
react-native start
Reload the app
Re-run react-native run-ios
command if reloading doesn't work
