Basic Flutter App

Basic Flutter Android/iOS application with an image asset

Flutter creates a sample application with a stateful widget in a new Flutter project

A basic application can be created with a stateless widget

Provided example renders a basic stateless widget which displays a local image

Creating new Flutter App

Check Flutter installation to setup Flutter

Use flutter create command to create a Flutter project (here nc_app) :

flutter create nc_app

Running this command creates a sample flutter application with a button and text which displays the number of times the button is pressed

Setup for adding assets to a Flutter application

Setup for using assets in a Flutter application includes copying the assets to Flutter project directory and then adding its path to pubspec.yaml

Add assets to project directory

Create a directory image_assets inside project directory (it can also be some other name)

Copy following image (or some other image) to image_assets directory

Edit pubspec.yaml

Open pubspec.yaml in a code editor or text editor

Uncomment and align the line containing # assets:

Add the created directory (or path to asset) after the uncommented line as:

  uses-material-design: true

  # To add assets to your application, add an assets section, like this:
  # assets:
  assets:
    - image_assets/
  #  - images/a_dot_burr.jpeg

Since it is a directory it is followed by a / (slash character)

App Code

Open lib/main.dart in a code editor or text editor

Delete whole code from lib/main.dart

Replace with the following code

import 'package:flutter/material.dart';

void main() => runApp(MyApp());

class MyApp extends StatelessWidget {

  @override
  Widget build(BuildContext context) {
    return MaterialApp(
      home: Scaffold(
        body: Center(
          child: AlertWidget()
        )
      )
    );
  }
}

class AlertWidget extends StatelessWidget {
  //path of added image is assigned
  String imagePath = "image_assets/flutterpic.jpg";
  @override
  Widget build(BuildContext context) {
    return Scaffold(
      appBar: AppBar(
          title:
          Center(child: Text('Nc Basic App', textAlign: TextAlign.center)),
      ),
      body: Container(
        width: double.infinity,
        // a DecoratedBox allows an image to be set as background for its child widget
        child: DecoratedBox(
          decoration: BoxDecoration(
            // path is passed as argument to AssetImage widget
            image: DecorationImage(image: AssetImage(imagePath), fit: BoxFit.cover),
          ),
          child: Column(
            mainAxisAlignment: MainAxisAlignment.center,
            children: <Widget>[
              SizedBox(height:10.0),
              Text('Basic App in Flutter',
                  style: TextStyle(color: Colors.white, fontSize: 25)),
              Text('with an Image ',
                  style: TextStyle(color: Colors.white, fontSize: 25))
            ],
          ),
        ),
      ),
    );
  }
}

Run instructions

Ensure one of following device is connected/started

• A physical device (Android or iOS) connected to computer and set to developer mode
• iOS simulator
• Android emulator

Go to project directory (here nc_app)

Use flutter run command to run

flutter run

It builds and runs app on an available android/ios device

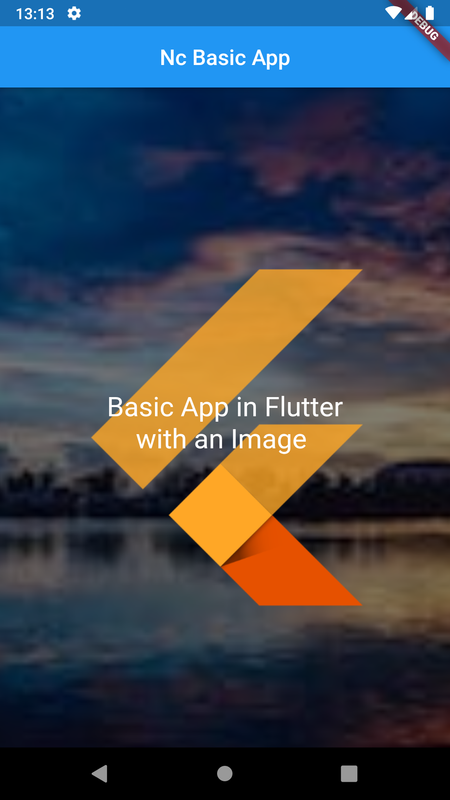

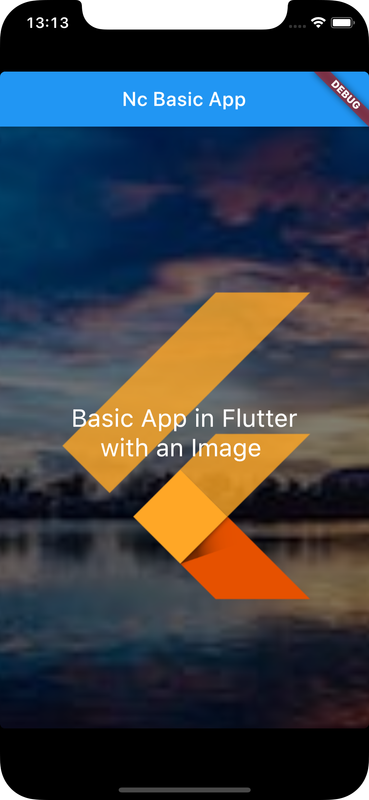

Screenshot/image

Android

iOS
