Flutter Progress Indicator

Flutter Progress Indicators

Progress indicators are used to indicate some work in progress like uploading, downloading files, registering a user etc

progress_indicators package can be used to add different types of progress indicators, such as, Jumping dots, Heartbeat, Glowing, Loading, etc


Creating new Flutter App

Check Flutter installation to setup Flutter

Use flutter create command to create a Flutter project (here progress_indicator_app :

flutter create progress_indicator_app

Dependency

Implementation

Import
import 'package:progress_indicators/progress_indicators.dart';

Progress Indicators:

Following progress indicators can be used with the package

Import

Import the package into dart code

import 'package:progress_indicators/progress_indicators.dart';

App code

Following example app code renders different progress indicators

progress_indicator_app/lib/main.dart
import 'package:flutter/material.dart';
import 'package:progress_indicators/progress_indicators.dart';

void main() => runApp(new ProgressIndicatorApp());

class ProgressIndicatorApp extends StatelessWidget {

  @override
  Widget build(BuildContext context) {
    return new MaterialApp(
      title: 'Progress Indicators',
      theme: new ThemeData(
        primarySwatch: Colors.blue,
      ),
      home: new DisplayPage(title: 'Progress Indicators'),
    );
  }
}

class DisplayPage extends StatefulWidget {
  DisplayPage({Key key, this.title}) : super(key: key);
  final String title;
  @override
  DisplayPageState createState() => new DisplayPageState();
}

class DisplayPageState extends State<DisplayPage> {
  @override
  Widget build(BuildContext context) {
    print(Offset(0.0, -1.0).distanceSquared - Offset(0.0, 0.0).distanceSquared);
    return new Scaffold(
      appBar: new AppBar(
        title: new Text(widget.title),
      ),
      body: new Center(
        child: new Column(
          mainAxisAlignment: MainAxisAlignment.center,
          children: <Widget>[
            Text('JumpingDotsProgressIndicator'),
            JumpingDotsProgressIndicator(
              fontSize: 20.0,
            ),

            SizedBox(height: 20.0),
            Text('HeartbeatProgressIndicator'),
            HeartbeatProgressIndicator(
              child: Icon(Icons.home),
            ),

            SizedBox(height: 20.0),
            Text('GlowingProgressIndicator'),
            GlowingProgressIndicator(
              child: Icon(Icons.home),
            ),

            SizedBox(height: 20.0),
            Text('FadingText'),
            FadingText('Loading...'),

            SizedBox(height: 20.0),
            Text('JumpingText'),
            JumpingText('Loading...'),

            SizedBox(height: 20.0),
            Text('ScalingText'),
            ScalingText('Loading...'),

            SizedBox(height: 20.0),
            Text('CollectionSlideTransition'),
            CollectionSlideTransition(
              children: <Widget>[
                Icon(Icons.android),
                Icon(Icons.apps),
                Icon(Icons.announcement),
              ],
            ),

            SizedBox(height: 20.0),
            Text('CollectionScaleTransition'),
            CollectionScaleTransition(
              children: <Widget>[
                Icon(Icons.android),
                Icon(Icons.apps),
                Icon(Icons.announcement),
              ],
            ),
          ],
        ),
      ),
    );
  }
}

Run instructions

Ensure a supported device is connected or emulator/simulator is started

Go to project directory

Use flutter run command to run

flutter run

It builds and runs app on an available android/ios device

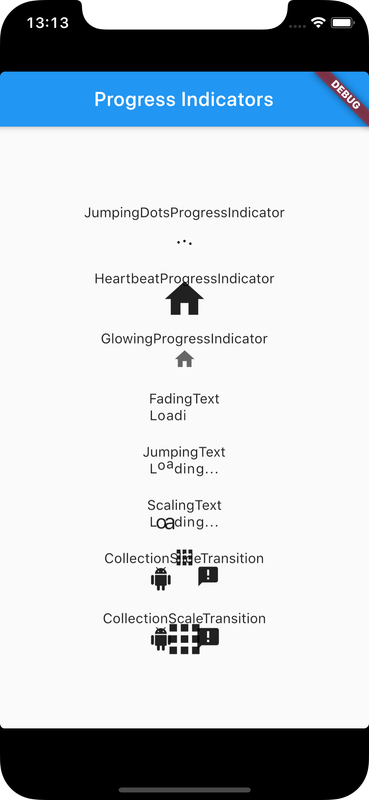

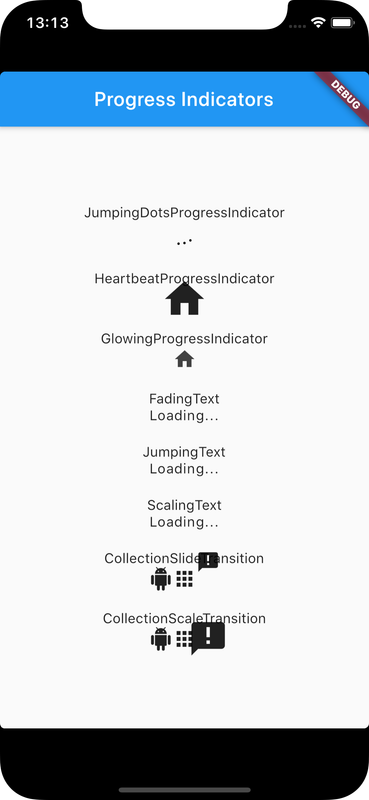

Screenshot/image

Android

cl-flutter-progress-indicators

iOS

cm_flutter_progress_indicator_as1cm_flutter_progress_indicator_as2cm_flutter_progress_indicator_as3
