flutter_facebook_login package (https://pub.dev/packages/flutter_facebook_login) is used to integrate facebook login with Flutter

It provides FacebookLogin().logIn() method which redirects a user to login to Facebook via webview of default browser and grant permission to application to access profile information

Usage

Import

Import flutter_facebook_login module for facebook login and flutter_auth_buttons for FacebookSignInButton

import 'package:flutter_auth_buttons/flutter_auth_buttons.dart';
import 'package:flutter_facebook_login/flutter_facebook_login.dart';

Initiate webview login workflow

logIn function takes an array of entities representing private data like 'email' for which permission is to be requested

final facebookLogin = FacebookLogin();
final token = await facebookLogin.logIn(['email']).accessToken.token;

Retrieve profile data using graph api

Use access token returned by logIn() after a valid login to send graph api request

final graphResponse = await http.get('https://graph.facebook.com/v2.12/me?fields=name,picture,email&access_token=${token}');
// decode http response body
final profile = json.decode(graphResponse.body);

It contains a user id which can be used to create a user account in Firebase for the application or can be sent to a private server with custom implementation of user accounts

Log out

await facebookLogin.logOut()

Creating new Flutter App

Check Flutter installation to setup Flutter

Use flutter create command to create a Flutter project (here named nc_fb_login) :

flutter create nc_fb_login

Prerequisite

Create a Facebook App ID & App Name

Click on Create a new app

Select an option which mentions Facebook Login (option 3)

Enter app id which should not contain Facebook trademark or brand elements like fb, and click Create App ID

Android settings

Go to Facebook application dashboard and click on Set up under Facebook Login and select Android platform
Alternatively, go to https://developers.facebook.com/docs/facebook-login/android and select app
Skip the step of downloading Facebook Sdk

To integrate sdk, edit build.gradle of android app and add provided dependency

nc_fb_login(flutter app name)/android/app/build.gradle

dependencies {
    implementation "org.jetbrains.kotlin:kotlin-stdlib-jdk7:$kotlin_version"
    testImplementation 'junit:junit:4.12'
    androidTestImplementation 'com.android.support.test:runner:1.0.2'
    androidTestImplementation 'com.android.support.test.espresso:espresso-core:3.0.2'
    implementation 'com.facebook.android:facebook-android-sdk:[5,6)'
}

cl-facebook-android-login-gradle-dependency

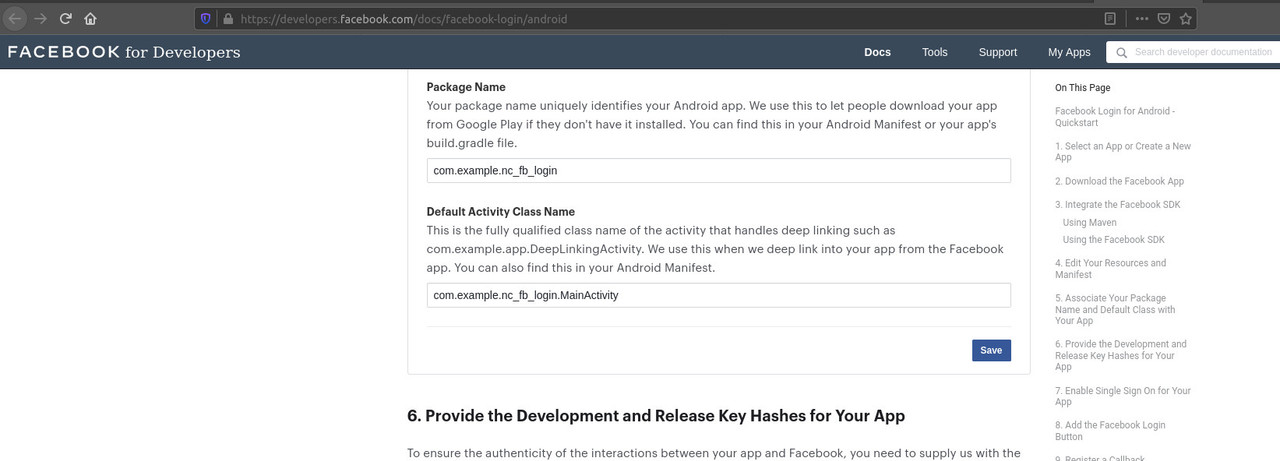

Enter Package Name and Default Activity Class Name which is typically <package name>.MainActivity
Package name can be found in nc_fb_login(flutter app name)/android/app/src/main/AndroidManifest.xml
Click on save
If a prompt is displayed mentioning problem verifying package name on Google Play, click on use this package name
To add Development key hash, use the provided command
```
keytool -exportcert -alias androiddebugkey -keystore ~/.android/debug.keystore | openssl sha1 -binary | openssl base64
```
This works in Linux, and returns a base64 value of sha1 hash
Paste it and click on Save
Enabling single sign on is optional

Next step is to add FacebookActivity in AndroidManifest and provided strings in strings.xml

Create strings.xml and add provided xml strings to

nc_fb_login(flutter app name)/android/app/src/main/res/values/strings.xml

<resources>
    <string name="app_name">NcFcbkLoginApp</string>
    <string name="facebook_app_id">567309393944105</string>
    <string name="fb_login_protocol_scheme">fb567309393944105</string>
</resources>

app_name seemingly was not required to match flutter or Facebook application name

Add provided metadata and activity in AndroidManifest before closing application tag (</application>)

nc_fb_login(flutter app name)/android/app/src/main/AndroidManifest.xml

<manifest xmlns:android="http://schemas.android.com/apk/res/android" package="com.example.nc_fb_login">
<!--  io.flutter.app.FlutterApplication is an android.app.Application that
         calls FlutterMain.startInitialization(this); in its onCreate method.
         In most cases you can leave this as-is, but you if you want to provide
         additional functionality it is fine to subclass or reimplement
         FlutterApplication and put your custom class here.  -->
    <application android:name="io.flutter.app.FlutterApplication" android:label="nc_fb_login" android:icon="@mipmap/ic_launcher">
        <activity android:name=".MainActivity" android:launchMode="singleTop" android:theme="@style/LaunchTheme" android:configChanges="orientation|keyboardHidden|keyboard|screenSize|smallestScreenSize|locale|layoutDirection|fontScale|screenLayout|density|uiMode" android:hardwareAccelerated="true" android:windowSoftInputMode="adjustResize">
        <!--  Specifies an Android theme to apply to this Activity as soon as
                         the Android process has started. This theme is visible to the user
                         while the Flutter UI initializes. After that, this theme continues
                         to determine the Window background behind the Flutter UI.  -->
        <meta-data android:name="io.flutter.embedding.android.NormalTheme" android:resource="@style/NormalTheme"/>
        <!--  Displays an Android View that continues showing the launch screen
                         Drawable until Flutter paints its first frame, then this splash
                         screen fades out. A splash screen is useful to avoid any visual
                         gap between the end of Android's launch screen and the painting of
                         Flutter's first frame.  -->
        <meta-data android:name="io.flutter.embedding.android.SplashScreenDrawable" android:resource="@drawable/launch_background"/>
        <intent-filter>
        <action android:name="android.intent.action.MAIN"/>
        <category android:name="android.intent.category.LAUNCHER"/>
        </intent-filter>
        </activity>
        <!--  Don't delete the meta-data below.
                     This is used by the Flutter tool to generate GeneratedPluginRegistrant.java  -->
        <meta-data android:name="flutterEmbedding" android:value="2"/>
       <meta-data android:name="com.facebook.sdk.ApplicationId"
           android:value="@string/facebook_app_id"/>

       <activity android:name="com.facebook.FacebookActivity"
           android:configChanges=
                   "keyboard|keyboardHidden|screenLayout|screenSize|orientation"
           android:label="@string/app_name" />
       <activity
           android:name="com.facebook.CustomTabActivity"
           android:exported="true">
           <intent-filter>
               <action android:name="android.intent.action.VIEW" />
               <category android:name="android.intent.category.DEFAULT" />
               <category android:name="android.intent.category.BROWSABLE" />
               <data android:scheme="@string/fb_login_protocol_scheme" />
           </intent-filter>
       </activity>
    </application>
</manifest>

Dependency

Add flutter_facebook_login and flutter_auth_buttons package to pubspec.yaml

device_location_app/pubspec.yaml

dependencies:
    flutter_facebook_login:
    flutter_auth_buttons:
    flutter:
        sdk: flutter

Run following command to add dependency
```
flutter pub get
```

Flutter App Code

device_location_app/pubspec.yaml

import 'package:flutter/material.dart';
// for json.decode()
import 'dart:convert';
// for async keyword
import 'dart:async';
// to send facebook graph api request
import 'package:http/http.dart' as http;
// for FacebookSignInButton
import 'package:flutter_auth_buttons/flutter_auth_buttons.dart';
// to initiate Facebook webview login
import 'package:flutter_facebook_login/flutter_facebook_login.dart';


void main() => runApp(new MaterialApp(
  title: 'Flutter Authentication App',
  home: new LoginPage(),
));

class LoginPage extends StatefulWidget {
  @override
  State<StatefulWidget> createState() => new _LoginPageState();
}

class _LoginPageState extends State<LoginPage> {
  final GlobalKey<FormState> _formKey = new GlobalKey<FormState>();
  final facebookLogin = FacebookLogin();
  // state variable to store profile data
  var _fbUser;

  // onPressed handler for FacebookSignInButton
  Future<dynamic> _handleSignIn() async {
    // facebookLogin.logIn() redirects user to login webview of Facebook (using default browser)
    final result = await facebookLogin.logIn(['email']);
    // get token from response (assuming user doesn't cancel login workflow)
    final token = result.accessToken.token;
    // send facebook graph api request to get name, picture and email
    final graphResponse = await http.get(
                'https://graph.facebook.com/v2.12/me?fields=name,picture,email&access_token=${token}');
    // decode http response body
    final profile = json.decode(graphResponse.body);
    // print(profile);
    // set state with profile data
    this.setState((){_fbUser= profile;});
  }

  Widget renderButton() {
    return Center(
      child: FacebookSignInButton(
        onPressed: this._handleSignIn,
        textStyle: TextStyle(
          fontSize: 14,
          color: Colors.white,
        ),
      ),
    );
  }

  Widget renderUser() {
      return Center(
        child: Column(
          // to center vertically
          mainAxisAlignment: MainAxisAlignment.center,
          children: [
            Container( height:200, width:200, child: Card( child:Image.network(_fbUser["picture"]["data"]["url"], fit: BoxFit.cover))),
            Container(
              padding: EdgeInsets.only(top:20),
              child: Column(
                children: [
                  Text('Name: ${_fbUser["name"]}'),
                  Text('Email: ${_fbUser["email"]}'),
              ],
            ),
          ),
        ],
      ),
    );
  }

  @override
  Widget build(BuildContext context) {
    // render button if user data is not available, else render retrieved user profile data
    var render = _fbUser == null? renderButton() : renderUser();
    return new Scaffold(
      appBar: new AppBar(title: new Text('Facebook Login'),),
      body: new Container(
        child: render,
      ),
    );
  }
}

A StateFulWidget is used with profile data (_fbUser) as state
Based on presence of user data, FacebookLoginButton is rendered or some user information is rendered
